This model is the modular design product, customers can customize the products according to different traffic demand, adopt advanced wafer membrane filtration material, can balance the oil flow and filtering effect, allowing maximum flow effectively filter targeted impurities and moisture at the same time, in the back pressure under the condition of minimum and maximum flow to achieve high efficiency, multi-directional gay uniform micro-porous membrane structure makes it has good filtration separation performance, and can implement the cleaning and back-washing operation.
Technical Index:

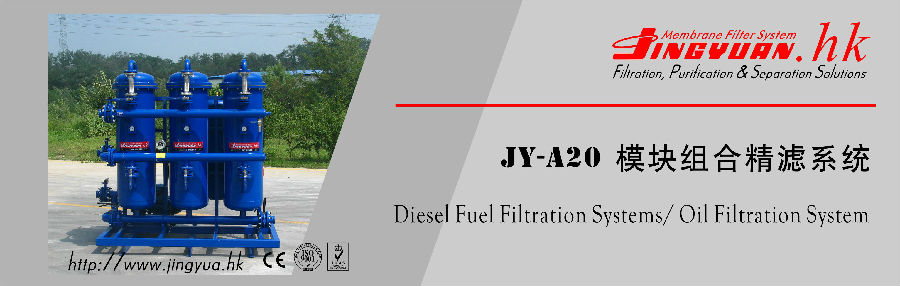

Model Type:JY-A20
Flow Rate: 25m3/h(Max)
Filtration Precision: 2~15 μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Motor Power: 4.0KW, 380V
Pump Unit: Centrifugal Pump/ Gear Pump
Pre-filtration : Y
Oil Inlet and Oil Outlet: DN80（3′）
Suitable Oil: Petroleum or mineral-based oil, lube oil and diesel
Measurement: 2150×1250×2030mm
Note: The flow rate varies with oil variety, quality, viscosity, equipment maintenance and other indicators, not in absolute value
Characteristics：
· Remove free water and impurities from petroleum or mineral-based oil products to improve product quality.
· Clarification filtration and removal of visible particles.
· Solve the turbidity caused by tiny suspended particles, impurities, water and colloid.
· Device prizing design make the installation, operation and maintenance more convenient. The compact design make the space smaller, and make the whole equipment more reliable.
· Modularization improves processing efficiency and reduces operating cost, which is the first choice for high standard quality control
· Provides a variety of filter elements with different precision
· In line with the national environmental regulations, no pollution consumables, no oil loss, overall safe and reliable compliance
· Polymer membrane filter elements can be used repeatedly after washed, save the cost of consumables
· The equipment is easy to operate, and has a professional after-sales team tracking service, so that you have no worries
· Be suitable for lube oil, diesel and other liquids (customized)
Quality Guarantee and Reliability:
＞ All of Jingyuan membrane filters are produced with high quality, and meet the manufacturing standard.
As a result,our filters will run efficiently and safely.
＞ All products are strictly designed and manufactured in accordance with ISO9001 Quality Control System.
