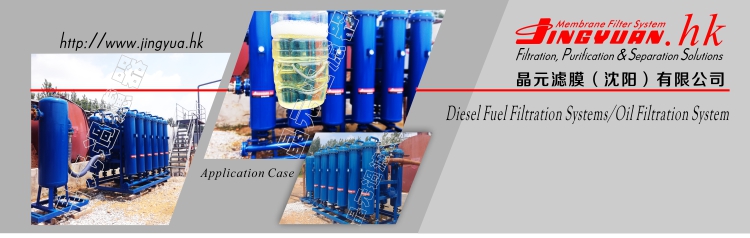

Customer: A mining machinery oil depot in Panjin City, Liaoning Province

Problem:  The mining areas were located in remote mountain areas, since engineering machinery is always working in the wild environment,  the quality of diesel cannot be guaranteed, and will be harmful to the machinery. The frequent replacement of nozzles lead to high cost, and will affects the normal operation of machinery.

Solution: As the pre-filtration of hydrogenation process, JY-DL60 Large Capacity Modular Diesel Purification Filter System can be used to remove impurities and water in catalytic diesel.

Specification:

＞  Modular design is suitable for different flow rate

＞  Filtration modular system can work continuously

＞  High performance membrane filter elements

＞  Large capacity, deep filtration and high rejection rate

＞  Water removal characteristic to remove free water

＞  Long service life and extensive chemical compatibility

＞  High quality conponents and advance technology guarantee the high efficiency of the whole equipment

＞  Simple operation and convenient maintenance optimize the structure, and each module has its particular function

＞  With back-washing system to clean the blocked elements

＞  With maintenance free pre-filtration module

＞  High quality steel tank with advanced processing technic make the filtration unit more elegant in appearance,  more firm in structure and  longer service life

＞  Desigh service life is more than 20 years (except the elements)

＞  Flexible installation process, extensive applications, adjustable flow rate

＞  The initial investment can be reduced and the construction period can be shortened

Technical Index:

Model Type: JY-DL60

Flow Rate: 50~60 tons/h (Depends on the quality of oil)

Filtration Precision: 2,5,10,15,20μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Filtration Efficiency(≥4μm):98%

Pre-filtration: Y (Two levels)

Pipeline Diameter: DN100(4′)

Suitable Oil: Light diesel, aviation kerosene

Measurement: 3250*1700*2450mm

Shenyang Jingyuan Membrane Systems Co., Ltd. ------ Your Cooperation Partner in Oil Purification

The polymer membrane material is different from traditional filtration material, since the lipophilic characteristic of membrane, the oil will pass from inside of the elements, and colloid, impurities and water will be held back on the surface. Therefore, by periodic cleaning, the elements can be used repeatedly, and the service life of them will be 2~3 years. Compared with filter sand, the consumable costs is low, and compared with filter screen, the cleaning process is convenient. So membrane filtration technology is expected to be good in the years ahead!
