Jingyuan intelligent flow monitoring delivery pump, industrial application, professional pumping technology, cumulative flow, instantaneous flow, quantitative pumping. Jingyuan provides pumping solutions for industrial applications, and always adheres to the principle of meeting the personalized needs of customers. According to customer requirements, Jingyuan can customize the control system for each product.
Technical Index:

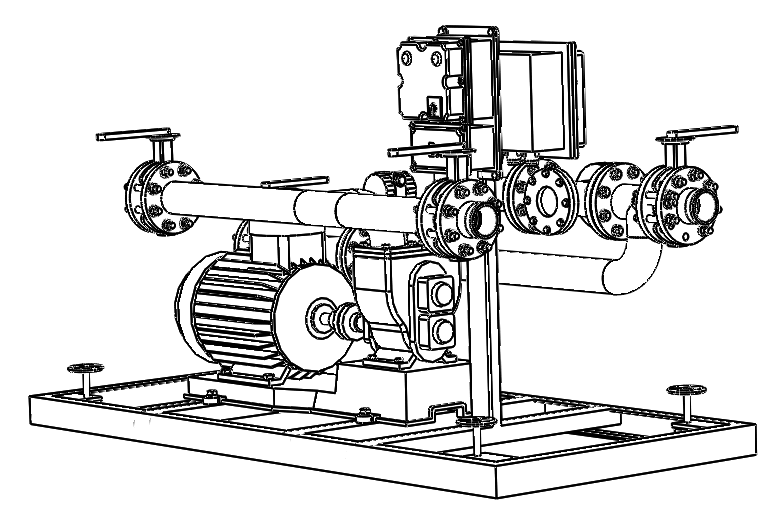

Product Name : Device Prizing Intelligent Quantitative Delivery Pump
Model Type: JY-D60/D80/D120
Flow Rate: 60/80/120 m3/h ( According to your needs)
Working Pressure: 0.6 Mpa
Horizontal Suction: 7 m
Vertical Suction: 5m
Delivery Viscosity: 5～1500cst
Temperature: ＜80℃
Explosion-proof Motor Power: 7.5~22KW
Anti-hazard Classification: IP65
Control System: Explosion-proof Quantitative Metering Intelligent Controller
Long-range Control: Real-time online monitoring on mobile APP/PC
Metering System: Accumulative Flow Rate, Instantaneous Flow Rate
Quantitative: Set parameters for quantitative pumping
Pump group technical specifications: according to the selected pump group technical parameters shall prevail
Oil Outlet: DN80 or Pump Standard
Oil Inlet: DN80 or Pump Standard
Measurement: 2000×900×1200mm
Application:
It is suitable for conveying all kinds of oil media, such as diesel oil, gasoline and kerosene, with viscosity of 5 ~ 1500CST and temperature below 80℃, without solid particles and without corrosion
