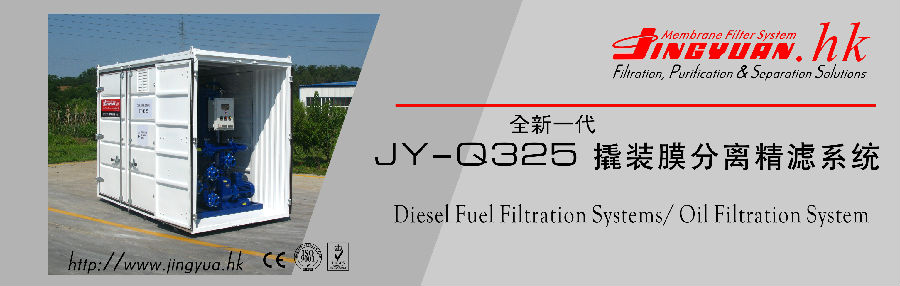

Jingyuan? Container DevicePrizing Filtration System is a system with modularization, device prizing andindustrialization, which makes the utility debugging in manufacturing plantrealized, the user’s interface is used, and the special needs of customers arefully solved. It is suitable for all kinds of oil depots, gas stations, oilfields, offshore platforms, refineries, large-scale construction sites and soon.
Technical Index:
Model Type:JY-Q325
Flow Rate: 40m3/h
Filtration Precision: 2~15 μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.3 Mpa
Intelligent Hardware: Industrial Internet of Things Wireless Data Transmission
Flow Rate Monitoring: Mobile App Online Real-time Flow Data Monitoring
Metering System: Quantitative Filtration, Accumulative Flow Rate, Instantaneous Flow Rate
Control System: Explosion-proof Quantitative Metering Intelligent Controller
Explosion-proof Motor Power: 7.5KW
Voltage: 380V
Pump Unit: Centrifugal Pump/ Gear Pump
Pre-filtration : Y
Suitable Oil: diesel, aviation kerosene, gasoline
Oil Inlet and Oil Outlet: DN80（3′）
Measurement: 3040×1700×2340mm
·Remove free water and impurities from petroleum products to improve product quality.
·Clarification filtration and removal of visible particles.
·Solve the turbidity caused by tiny suspended particles, impurities, water and colloid.
·Effectively remove changchai, glue and impurities.
·The filter element is separated by molecular membrane, and the diesel oil after fine filtration is clear and bright
·Membrane separation filter element has strong chemical resistance, acid resistance, alkali resistance, organic solvent resistance, non-viscous surface, minimum surface tension, anti-fouling performance, asymmetric micro structure.
·Jingyuan advanced membrane filtration material can balance the oil flow and filtration effect, not only allowing the maximum flow, at the same time, effectively filter target impurities and water. It can achieve the high efficiency under the condition of minimum back pressure and maximum flow. The multitropic uniform membrane microporous structure provides excellent filtration and separation performance, and can be used for cleaning and back-washing operations.
·High efficiency, energy saving and environmental protection
·Device prizing design make the installation, operation and maintenance more convenient. The compact design make the space smaller, and make the whole equipment more reliable.
·The production and assembly of device prizing filtration equipment are completed in the factory, which greatly reduces the on-site installation workload. Only the connection of interface pipeline and external electrical can be completed. Because functional components are integrated into an integrated container, they can be easily migrated as a whole.
·Equipped with Jingyuan latest industrial Internet of Things intelligent monitoring and management system, the mobile phone client can check the oil output and working hours at any time, allowing managers to grasp the production situation of their enterprises online in real time.
·International working idea and manufacturing level
Application:
It is suitable for gas station, oil depot, oil refinery, railway bureau oil depot, large generator set, military industry, nuclear power plant, power plant, oil extraction plant, oil loading filtration, oil unloading filtration and other industries.
Fuel Polishing Systems for all fuels
Fuel Polishing & Filtration Services
Diesel and Oil Filtration
mobile fuel polishing system
Diesel Fuel Quality & Storage Tank Solutions
Bulk Diesel Filter
Diesel storage tank and fuel filtration purification
Fuel Polishing Commercial Generators
Diesel Fuel Farm Upgrade
Diesel Fuel Purifier
The Complete Solution to Water in Fuel
Quality Guarantee and Reliability:
＞ All of Jingyuan membrane filters are produced with high quality, and meet the manufacturing standard.
As a result,our filters will run efficiently and safely.
＞ All products are strictly designed and manufactured in accordance with ISO9001 Quality Control System.
