Technical Index:
Model Type: JY-H180
Flow Rate: 50~80 L/min (Depends on the viscosity and temperature of oil)
Filtration Precision: 2~20μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Working Temperature:-10~70℃
Suitable Oil: Hydraulic oil, engine oil( Petroleum or mineral base oil)
Tank Capacity:60L
Voltage: 380V (Continuously work for long time)
Measurement: 1200*720*890mm
Weight:160Kg

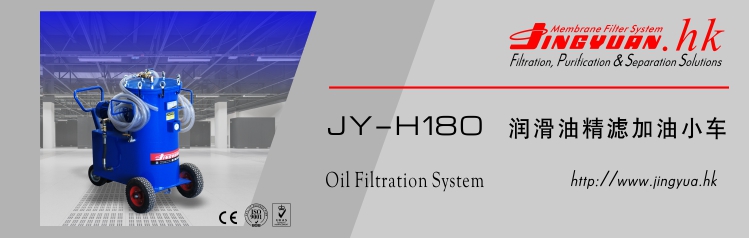

In order to make the refueling and filtration more convenient, JY-H180 Lube Oil Filtration and Refuel Trolley is equipped with a 60L oil tank. It adopts the membrane elements which were researched by Jingyuan, and can control the contamination level of oil effectively, at the same time to remove the impurity particles, colloid and water from oil.
Its application areas includes hydraulic oil, lube oil, engine oil, gear oil and so on
