Filter the new oil, and pump the oil from oil storage tank to systematic oil tank. Purify the oil being used, and improve the performance of oil filtration. The filter can be used in the refined purification for hydraulic oil, gear oil and lubricating oil, break the emulsified structure, remove trace water contained in oil(ppm).
Technical Index:

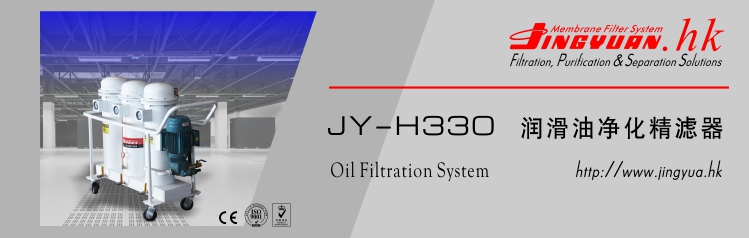

Model Type: JY-H330
Flow Rate: 30~40 L/min (Depends on the viscosity and temperature of oil)
Filtration Precision: 2~20μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Working Temperature:-10~70℃
Suitable Oil: Hydraulic oil, engine oil, gear oil, steam turbine oil, transformer oil( Petroleum or mineral base oil)
Voltage: 380V (Continuously work for long time)
Measurement: 1160*450*1000mm
Weight:148Kg
