Specially designed for diesel purification.According to the characteristics of light diesel, we adopt high performance membrane filtration technology to refine the diesel,as well as to remove the impurities, colloid and water from oil. As a result, the quality level of diesel can be upgraded. This type can supply fuel filtration and oil injection service for oil storage tank, oil drum, oil pool, engineering machinery, agricultural machinery on working site.
Technical Index:

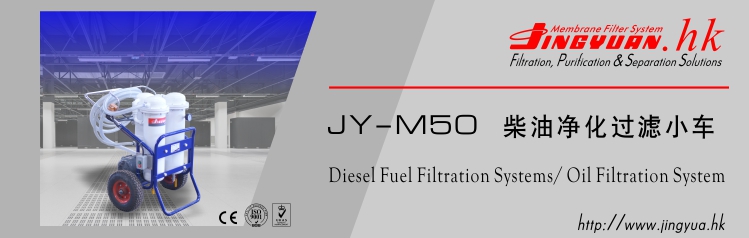

Model Type: JY-M50
Flow Rate: 30~40 L/min
Filtration Precision: 2,5,10,15,20μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Filtration Efficiency(≥4μm):98%
Filtration Level: 2
Voltage: 220V/380V
Suitable Oil: Light diesel, aviation kerosene
Measurement: 550*560*920 mm
Weight: 87Kg
·Small volume, excellent convenience, high precision, deep filtration, high rejection rate, low pressure differential
·Be strictly designed and manufactured in accordance with ISO9001 Quality Control System.
