Specially designed for diesel purification.According to the characteristics of light diesel, we adopt high performance membrane filtration technology to refine the diesel,as well as to remove the impurities, colloid from oil, especially for the diesel content emulsified water,the separation effect is obvious. As a result, the quality level of diesel can be upgraded.
Technical Index:

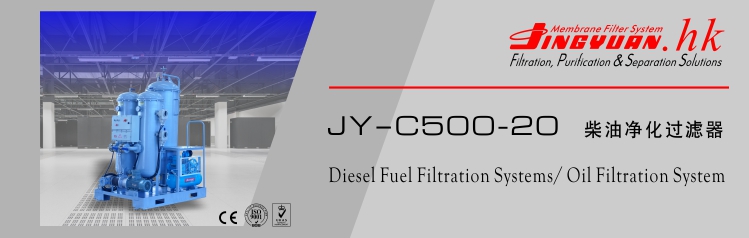

Model Type: JY-C500-20
Flow Rate: 20 m3/h
Filtration Precision: 2,5,10,15,20μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Filtration Efficiency(≥4μm):98%
Water Separation Rate:98%
Filtration Level: 3
Motor: 380V Explosion-proof Motor (Siemens)
Pump Unit: Imported screw pump(Italy)
Tank: 304 Stainless steel
Pipeline Diameter: DN65(2.5′)
Suitable Oil: Light diesel, aviation kerosene
Measurement: 1650*1230*2200mm
Weight:890 Kg
Optional Accessories:
Flowmeter
Automatic back-blow subassembly
Water sensor warming component
Automatic bailer
Fuel Polishing Systems for all fuels
Fuel Polishing & Filtration Services
Diesel and Oil Filtration
mobile fuel polishing system
Diesel Fuel Quality & Storage Tank Solutions
Bulk Diesel Filter
Diesel storage tank and fuel filtration purification
Fuel Polishing Commercial Generators
Diesel Fuel Farm Upgrade
Diesel Fuel Purifier
The Complete Solution to Water in Fuel
Fuel Polishing To Solve Microbe Problems
Fuel Polishing To Clean Out Solids
Fuel Polishing To Solve Microbe Problems
Fuel quality is crucial for fleets, trucks,and heavy equipment. From damaged engines to increased sulfur emissions, dirtyfuel can affect business operations in negative ways. To prevent theseexpensive problems, it’s important to maintain fuel quality with diesel fuelpolishing.
