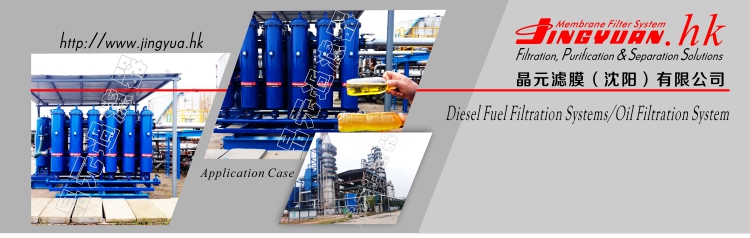

Customer: Shandong Shouguang Luqing Petrochemical Co., Ltd.

Problem：Specially designed for diesel purification.According to the characteristics of light diesel, we adopt high performance membrane filtration technology to refine the diesel,as well as to remove the impurities, colloid and water from oil. As a result, the quality level of diesel can be upgraded.

Solution: JY-DL60 Multifunction Diesel Fuel Refined and Water Separation System is suitable for standard diesel and emulsified diesel(to remove emulsified water).Especially for oil contents a lot of water, the separation effect is particularly significant, and the separation rate is several times even dozens times than traditional filtration method.

Filtration Effect:

By Jingyuan environmental protection and high-tech diesel purification filters,the impurities, colloid and free water in diesel can be separated at once, as well as decolorizing white soil, decolorizing sand and other particle impurities. At the same time, the membrane elements can be used repeatedly after washed.( Not suitable for emulsified diesel)

Product Introduction:

Flow Rate: 50~60 tons/h (Depends on the quality of oil)

Filtration Precision: 2,5,10,15,20μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Filtration Efficiency(≥4μm):98%

Pre-filtration: Y (Two levels)

Pipeline Diameter: DN100(4′)

Suitable Oil: Light diesel, aviation kerosene

Measurement: 3250*1700*2450mm

Excellent Characteristics:

·Solve the oil turbidity caused by micro particulates, impurities, water and colloid.

·Remove lots of water and sediment from distillation diesel and catalytic kerosene.

·Diesel becomes clear and bright after refined by membrane elements.

·High-efficiency, energy-saving and environmental protection.

·Modular design make installation and maintenance more convenient.
