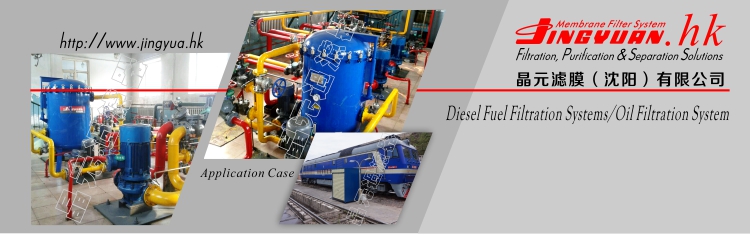

Railway Large Oil Depot —— High Performance and Large Flow Diesel Purification and Filtration Case

Customer: Harbin Railway Administration Oil Depot

Vehicle Model：Railway Locomotive (diesel engine )

Problem：

In order to prevent the mechanical impurities and water were poured into diesel locomotive, as well as increase the quality of diesel in oil storage tank.

Solution:

Install one set or several sets of JY-DF60A Large Flow and High Performance Diesel Purification Filter in each railway locomotive fuel pump station to remove impurity, colloid and water from diesel. We should discharge the contamination from bottom of tank every week( most of the impurity is smooth colloid and water) , and backwash the filter every 30 days. The service life of filter element will be 2~3 years if we filter 300 tons diesel every day.

JY-DF60A Large-flow and High-performance Diesel Purification Filter

Flow Rate: 20~40 tons/h (Depends on the quality of oil)

Filtration Precision: 2,5,10,15,20μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Filtration Efficiency(≥4μm):98%

Voltage: 380V Explosion-proof Motor

Pre-filtration: Y (One Level)

Pipeline Diameter: DN80(3′)

Suitable Oil: Light diesel, aviation kerosene

Measurement: 1850*1700*2450mm

Application:

Be suitable for large oil depot, diesel refinery, transportation company owned oil storage tank, railway station oil depot, gas station, engineering machinery owned oil storage tank, mining machinery owned oil storage tank,construction site diesel supply station, large scale generator unit, military industry,nuclear power,power plant, oil extraction plant, oil loading filtration and oil unloading filtration and so on.

Quality Guarantee and Reliability:

＞ All of Jingyuan membrane filters are produced with high quality, and meet the manufacturing standard.

  As a result,our filters will run efficiently and safely.

＞ All products are strictly designed and manufactured in accordance with ISO9001 Quality Control System.

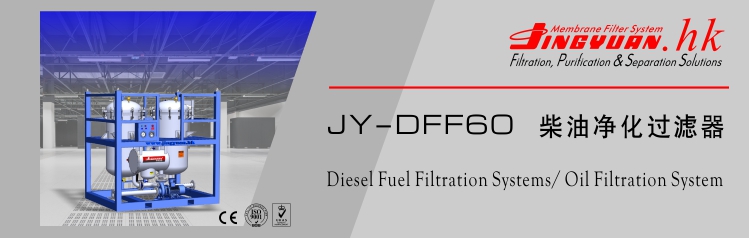

Upgrade Model: JY-DFF60 High Performance Large Capacity Diesel Purification System/ Water Separator

Specially designed for diesel purification.According to the characteristics of light diesel, we adopt high performance membrane filtration technology to refine the diesel,as well as to remove the impurities, colloid from oil, especially for the diesel content emulsified water,the separation effect is obvious. As a result, the quality level of diesel can be upgraded.

Suitable for standard diesel and emulsified diesel(to remove emulsified water).Especially for oil contents a lot of water, the separation effect is particularly significant, and the separation rate is several times even dozens times than traditional filtration method.
